rincian produk

Rumah Produk

12,000Gs Grated Permanent Magnetic Separator dry magnetic separator separation, reliability Removal of the intense magnetic iron contamination, weak magnetic iron pollutants minerals, chemical

Nama merek:	WeSeW
Nomor Model:	CX-717
MOQ:	1 buah
harga:	Price Negotiation
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	1000000pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Tiongkok

Sertifikasi:

CE,UL

Kekuatan Medan Magnet:

≥3000GS

Voltase:

220V

Disesuaikan:

Disesuaikan

Komponen inti:

Bantalan

Frekuensi:

50Hz

Kustomisasi:

Tersedia Permintaan Khusus

Jenis:

Pemisah Magnetik Permanen (Tipe Parut)

Bahan:

Baja tahan karat

Kemasan rincian:

kotak kayu

Menyediakan kemampuan:

1000000pcs per bulan

Menyoroti:

12 000Gs dry magnetic separator

permanent magnetic separator for minerals

magnetic separation machine with warranty

Deskripsi Produk

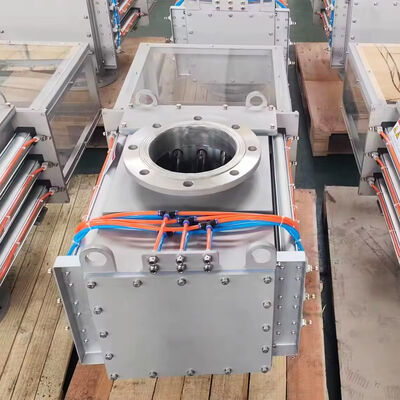

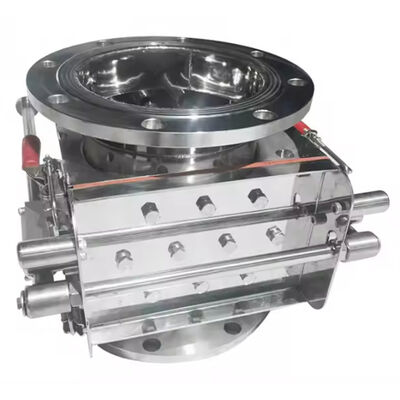

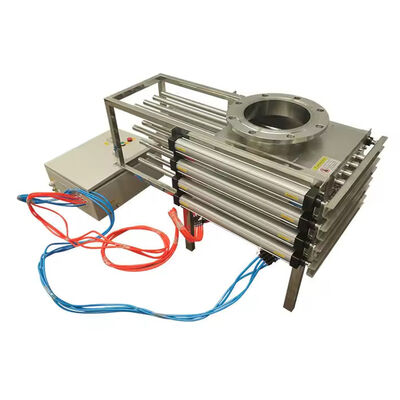

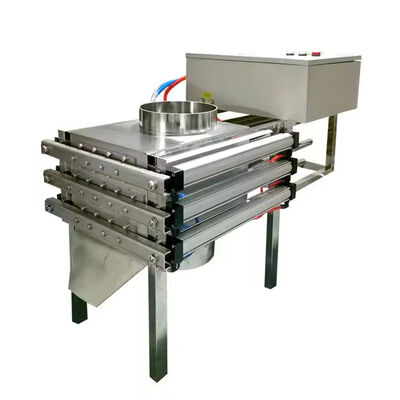

12,000Gs Grated Permanent Magnetic Separator

High-performance dry magnetic separator designed for reliable removal of intense magnetic iron contamination and weak magnetic iron pollutants from minerals, chemicals, pharmaceuticals, food products, plastics, ceramics, and building materials.

Type	Magnetic Separator
Warranty	1 Year
After-sales Service	Video technical support, Online support
Application	Minerals powder processing

Working Principles

When material flows through the separator, ferromagnetic particles are adsorbed onto the internal permanent magnet bars, effectively separating them from the bulk material. This dry magnetic separator is particularly effective for materials with high apparent viscosity and poor fluidity.

Performance Characteristics

Peak magnetic field intensity of 12,000Gs
Stainless steel shell construction with strong tension and excellent separation precision
Compact design suitable for all bulk materials with minimal stoppage
High capture power reduces slag discharge frequency and labor intensity
Effective removal of both intense and weak magnetic contaminants (rust, iron filings, etc.)
Specialized for superfine powder applications and materials with viscosity/poor fluidity
Standard operation up to 80°C, with high-temperature models available for 200°C applications
Custom configurations available for different interfaces and magnetic density requirements

The power-efficient design features a discharge valve shape and simple circuit-controlled rotation speed. Using Nd-Fe-B rare-earth magnets with high coercive force and remanence, the separator maintains less than 5% magnetic force attenuation over 8 years, with a service life exceeding 15 years.

Application Fields

Ideal for iron removal from granules and powders in minerals, chemicals, pharmaceuticals, food processing, plastics, ceramics, building materials, coal, and refractory products. Compatible with belt conveyors, vibrating conveyors, electro-vibrating feeders, discharge chutes, and irregular hoppers.

Product Images
