Customized Dry Magnetic Separator with Magnetic Field Strength ≥3000GS for Efficient Ore Processing and Recycling

Nama merek:	WeSeW
Nomor Model:	CX-717
MOQ:	1 pc
harga:	Price Negotiation
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	1000000pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

CINA

Sertifikasi:

CE,UL

Kekuatan Medan Magnet:

≥3000GS

Voltase:

220v

Disesuaikan:

Disesuaikan

Komponen inti:

Bantalan

Frekuensi:

50Hz

Kustomisasi:

Tersedia Permintaan Khusus

Jenis:

Pemisah magnetik

Bahan:

baja tahan karat

Kemasan rincian:

Kasing kayu

Menyediakan kemampuan:

1000000pcs per bulan

Menyoroti:

Magnetic Field Strength ≥3000GS Dry Magnetic Separator

Voltage 220V Magnetic Separator

Frequency 50Hz Magnetic Equipment

Deskripsi Produk

Dry Magnetic Separator for Mineral Processing

Professional OEM magnetic separator equipment designed for efficient rough and fine separation of magnetic minerals like iron ore and manganese ore. Ideal for recycling ferrous materials and processing magnetite in dry conditions.

Product Specifications

Type	Magnetic Separator
Production Capacity	98%
Voltage	220V/380V
Weight	4000 KG
Warranty	12 Months
Core Components	Motor
Magnetic Strength	1000-10000Gs
Capacity	≤5-15t
Drum Length (mm)	1200, 1400, 1600
Particle Size (mm)	≤10, ≤12, ≤15

Key Features

High-strength, corrosion-resistant construction materials
Manual or automated control system options
Customizable motor types (AC, DC, variable frequency drive)
Compact design with low energy consumption
Simple operation and low maintenance costs
Ideal for water-scarce regions or moisture-sensitive applications

Product Description

Dry magnetic separators utilize magnetic differences to separate minerals without water, enabling efficient dry separation of magnetic and non-magnetic minerals. The core component is a permanent or electromagnetic system where magnetic particles adhere to the drum surface and are carried to the discharge zone, while non-magnetic particles fall naturally.

Key Functions

Ferromagnetic Material Removal: Extract iron, steel, nickel, cobalt and other magnetic materials
Material Purification: Remove unwanted metal contaminants to improve product quality
Resource Recovery: Separate valuable ferrous metals from waste streams for recycling
Equipment Protection: Remove stray metals that can damage downstream processing equipment
Magnetic Ore Concentration: Increase concentration of valuable magnetic minerals in mined ore

Industrial Applications

Our magnetic separators are widely used across multiple industries:

Mining and mineral processing: Iron ore concentration, non-ferrous ore purification
Recycling: Ferrous metal recovery from municipal waste, e-waste, and scrap
Food processing: Metal contaminant removal for safety and equipment protection
Plastics industry: Iron contaminant removal from plastic materials
Foundries and metal processing: Ferrous material separation from by-products
Coal processing: Pyrite sulfur and tramp iron removal
Cement industry: Tramp iron removal from raw materials

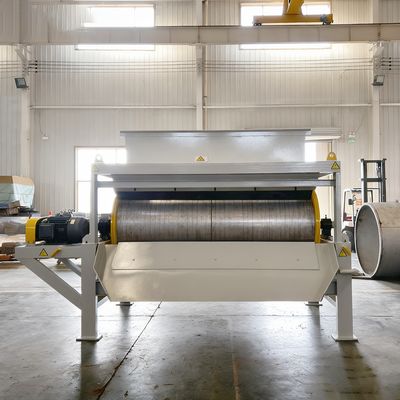

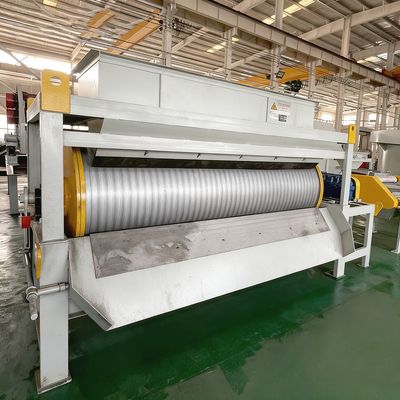

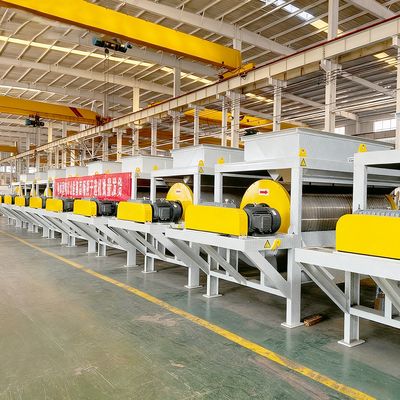

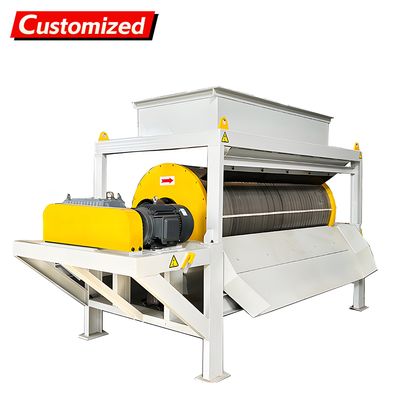

Product Gallery
