Custom High Transmission Efficiency Ball Spline with High Positioning Accuracy and Strong Load-Bearing Capacity

Custom High Transmission Efficiency Ball Spline with High Positioning Accuracy and Strong Load-Bearing Capacity

Nama merek:	WeSeW
Nomor Model:	CNC0184
MOQ:	1 buah
harga:	US$5~US$50 per pc
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	10.000 lembar per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001/UL

Nama:

Poros Roda Gigi Splined Presisi

OEM/ODM:

Layanan Mesin Pembubutan Penggilingan CNC OEM ODM

Kemampuan Materi:

Aluminium, Kuningan, Perunggu, Tembaga, Logam Keras

Aplikasi:

Mesin Pemotong Logam, Mesin Pelurus Logam, Mesin Pemintalan Logam, Suku Cadang Mesin Pengolahan Loga

Standar:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

Pemesinan CNC atau tidak:

pemesinan cnc

Pemesinan mikro atau tidak:

Pemesinan Mikro

Metode pemrosesan:

Gambar Teknik Pelanggan

Kemasan rincian:

kotak kayu

Menyediakan kemampuan:

10.000 lembar per bulan

Menyoroti:

High Transmission Efficiency Ball Spline

High Positioning Accuracy Splined Shaft

Strong Load-Bearing Capacity Gear Shaft

Deskripsi Produk

Custom High-Speed Spline Shaft Ball Spline

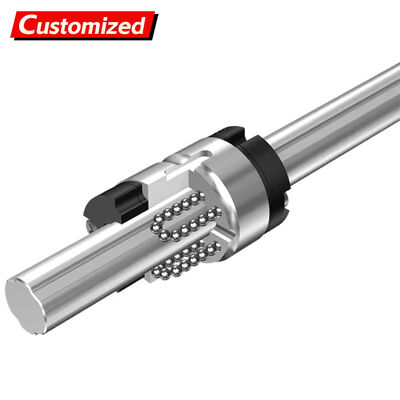

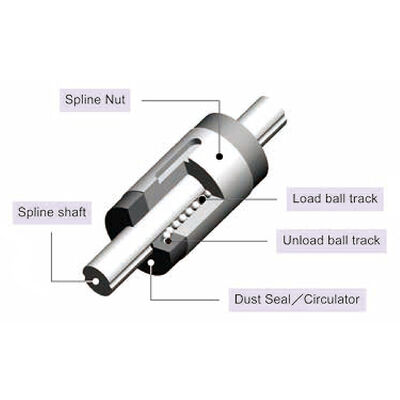

Ball splines are precision transmission components that integrate rotational and linear motion functions, primarily consisting of a splined shaft, splined sleeve, and circulating balls. They achieve efficient power transmission through the rolling motion of balls between the splined shaft and sleeve.

Product Specifications

Product Name: Ball Spline

Model: 25

Material: Bearing Steel

Manufacturing Process: Rolled Thread

Core Components: Bearing

Length: Customized

Weight: 1 kg

Condition: New

Warranty: 1 Year

Key Advantages

High Transmission Efficiency: Point contact between balls and raceways minimizes friction coefficients, reducing energy loss while delivering responsive operation and superior dynamic performance
High Positioning Accuracy: Preload adjustment eliminates rotational backlash, enabling zero-backlash transmission with micrometer-level repeatability precision
Strong Load-Bearing Capacity: Gothic 40° angular contact structure increases contact area, handling radial, axial, and overturning torque loads simultaneously
Compact & Durable Design: Single shaft enables dual-degree-of-freedom motion, reducing installation space with excellent lubrication and extended service life

Industry Applications

Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining, Advertising Companies, and various other industrial sectors. Specifically used in CNC machine tools, industrial robots, medical equipment, aerospace, automotive manufacturing, and precision printing machinery.

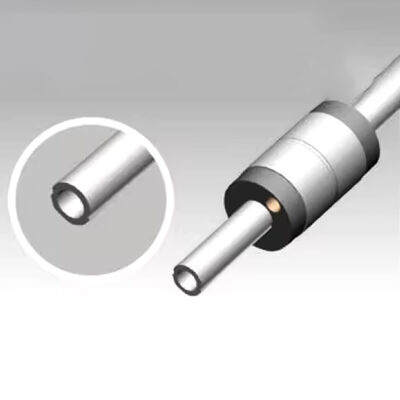

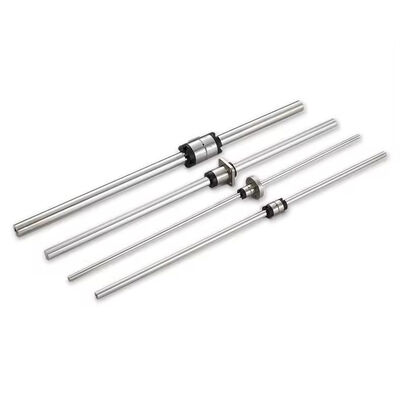

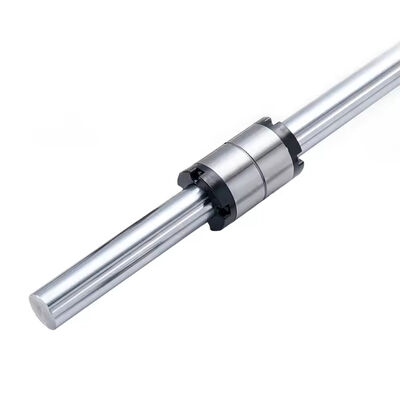

Product Gallery
