Precision CNC Machined Splined Shaft with High Transmission Efficiency for Multi-Axis Linkage Transmission Systems

Precision CNC Machined Splined Shaft with High Transmission Efficiency for Multi-Axis Linkage Transmission Systems

Nama merek:	WeSeW
Nomor Model:	CNC0184
MOQ:	1 buah
harga:	US$5~US$50 per pc
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	10.000 lembar per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

CE, ISO9001/UL

Nama:

Poros Roda Gigi Splined Presisi

OEM/ODM:

Layanan Mesin Pembubutan Penggilingan CNC OEM ODM

Kemampuan Materi:

Aluminium, Kuningan, Perunggu, Tembaga, Logam Keras

Aplikasi:

Mesin Pemotong Logam, Mesin Pelurus Logam, Mesin Pemintalan Logam, Suku Cadang Mesin Pengolahan Loga

Standar:

DIN, ASTM, GOST, GB, JIS, ANSI, BS

Pemesinan CNC atau tidak:

pemesinan cnc

Pemesinan mikro atau tidak:

Pemesinan Mikro

Metode pemrosesan:

Gambar Teknik Pelanggan

Kemasan rincian:

kotak kayu

Menyediakan kemampuan:

10.000 lembar per bulan

Menyoroti:

Precision CNC Machined Splined Shaft

High Transmission Efficiency Gear Shaft

Multi-Axis Linkage Transmission Shaft

Deskripsi Produk

Custom CNC Machined Splined Shafts for Transmission Systems

Precision CNC-machined splined shafts with multi-axis linkage transmission for demanding industrial applications including automotive transmissions, aerospace systems, and CNC machine tool spindles.

Core Component Specifications

Component	Gear
Material	Steel
Weight	4.44 kg

Structure and Function

Precision splined shafts combine transmission and connection functions with precisely machined splines that ensure high-precision torque transmission and maintain coaxiality between shaft and mating components. Some designs integrate gear structures for rotational speed and torque conversion, enabling multi-axis synchronized transmission.

Manufacturing and Characteristics

Produced using high-precision CNC machining equipment with spline tooth form and directional errors controlled at micrometer levels. Gear tooth surfaces undergo finishing processes like grinding for low transmission noise and high efficiency. Components are crafted from premium alloy steels (40Cr, 20CrMnTi) with heat treatment processes including quenching, tempering, carburizing, and quenching to ensure high strength, exceptional wear resistance, and fatigue endurance.

Key Advantages

High transmission precision and load-bearing capacity for heavy loads and high rotational speeds
Compact design saves internal equipment space
Enhanced overall layout efficiency
Exceptional transmission accuracy and stability
Adaptable to demanding operating conditions

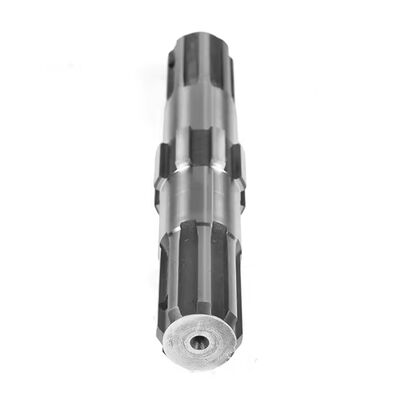

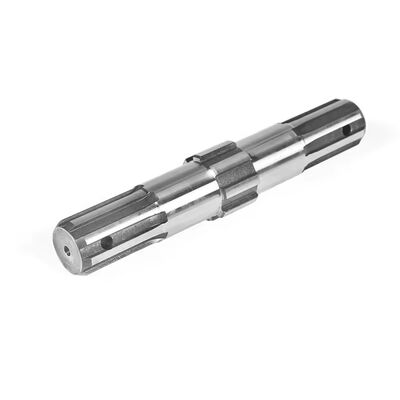

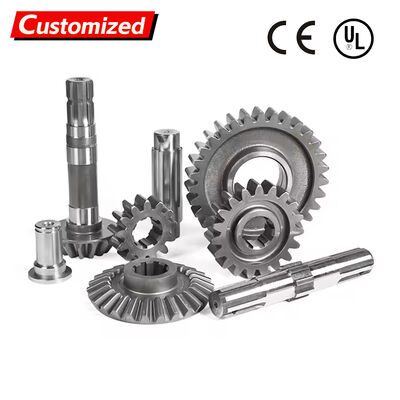

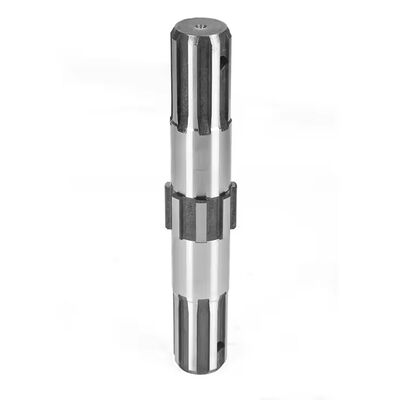

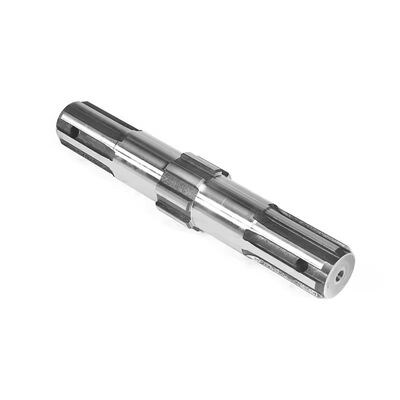

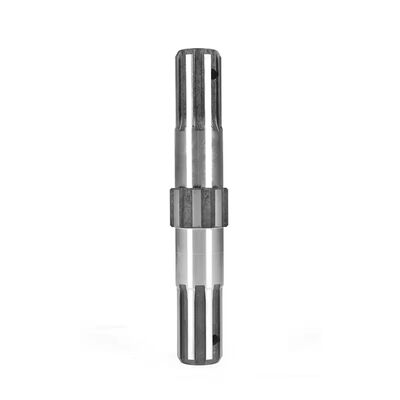

Product Gallery
