OEM factory Gas-Powered Tripod Tree Planting Drilling Machine-Portable Farm & Orchard Hole Digging Tool loess layers, clay layers, and soillayers containing pebbles and gravel

OEM factory Gas-Powered Tripod Tree Planting Drilling Machine-Portable Farm & Orchard Hole Digging Tool loess layers, clay layers, and soillayers containing pebbles and gravel

Nama merek:	WeSeW
Nomor Model:	RG-717
MOQ:	1 buah
harga:	Price Negotiation
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	1000000pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Cina

Sertifikasi:

CE,UL

Arah Rotasi:

Searah jarum jam/berlawanan arah jarum jam

Tipe Sekrup:

Helicoid atau sectional

kekuatan:

Kekuatan tarik tinggi

Industri yang Berlaku:

Pabrik Manufaktur, Energi & Pertambangan

Penggunaan:

Konveyor

Modus Operasi:

Manual Atau Otomatis

Sudut Kemiringan:

0-45 derajat

Fitur:

Desain fleksibel, mudah dibersihkan

Kemasan rincian:

Kasus kayu

Menyediakan kemampuan:

1000000pcs per bulan

Menyoroti:

gas-powered tree planting drill machine

portable farm hole digging tool

auger boring machine for clay

Deskripsi Produk

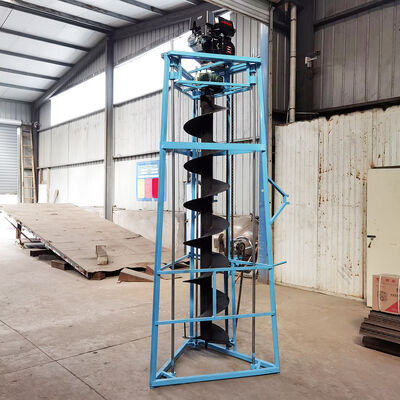

Gas-Powered Tripod Tree Planting Drilling Machine

Professional portable farm and orchard hole digging tool designed for challenging soil conditions including loess layers, clay layers, and soil containing pebbles and gravel.

Product Specifications

Type: Trenching Machine
Power Type: Gasoline
Warranty: 1 Year
Core Components: Cylinder
Weight: 230 kg
Dimensions: 3.1 × 1.5 × 1.3 m
Application: Planting, Digging, Drilling

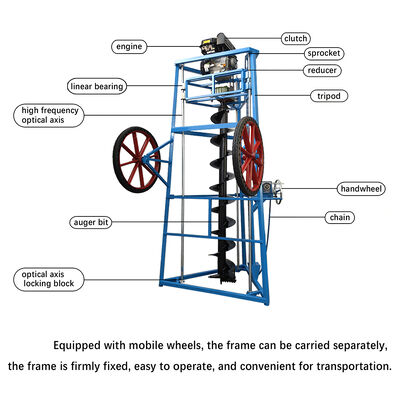

Key Features

Easy to operate with single-operator capability
High-quality excavation using high-strength drill bits
Four-corner positioning anti-torsion spiral drill rods
Produces straight, solid soil pits with minimal soil inside
Working depth range: 80-250 centimeters
Excellent performance in complex terrains including hills and mountains
Brand engine with strong power and durability
Thickened drill bit for extended service life
Customized handwheel for smooth operation

This equipment performs exceptionally well in complex terrains such as hills and mountains, and can operate effectively on most soil types including loess layers, clay layers, and soil layers containing pebbles and gravel.

Applications

Widely used in power and telecommunications engineering, municipal engineering, greening and tree planting engineering, construction engineering, solar photovoltaic power generation engineering, and related fields.

Technical Specifications by Model

Specification	Model 190-2.5	Model 170
Drill Frame Height	2500MM-2750MM (Adjustable)	1000MM-2500MM (Adjustable)
Bore Depth	2200MM-2500MM	500MM-2500MM
Max Bore Diameter	450MM	450MM
Optical Axis Diameter	25MM	25MM
Optical Axis Quantity	3 Roots	2 or 3 Roots (Optional)
Gas Engine Horsepower	15HP	7.5HP
Gas Engine Displacement	420CC	212CC
Gas Engine Power	10KW	4KW
Diesel Engine Speed	3600 RPM	3600 RPM
Fuel Tank Capacity	4.8L	3.6L
Oil Capacity	1L	1L
Fuel Type	92# Gasoline	92# Gasoline
Cooling System	Air-Cooled	Air-Cooled
Starting Method	Manual Start (Hand Crank)	Manual Start (Hand Crank)
Engine Type	Single-Cylinder 4-Stroke	Single-Cylinder 4-Stroke
Reducer Gear Ratio	1:10	1:10
Reducer Weight	35KG	13KG
Transmission	Chain Drive (Reducer + Optical Axis)	Chain Drive (Reducer + Optical Axis)
Engine Packaging	Wooden Crate	Wooden Crate
Drill Packaging	Thickened Protective Film	Thickened Protective Film
Total Weight	230KG	170KG

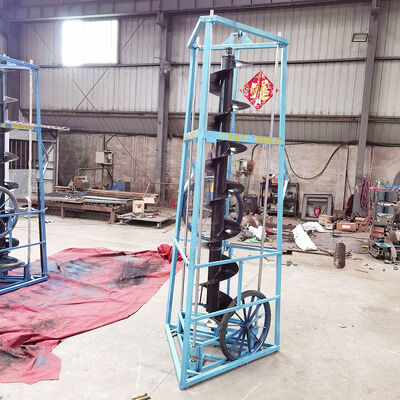

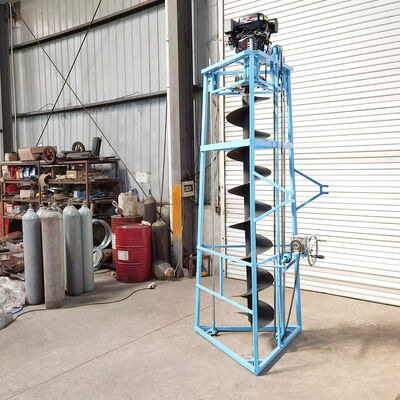

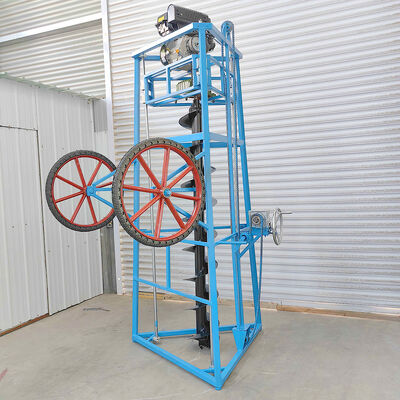

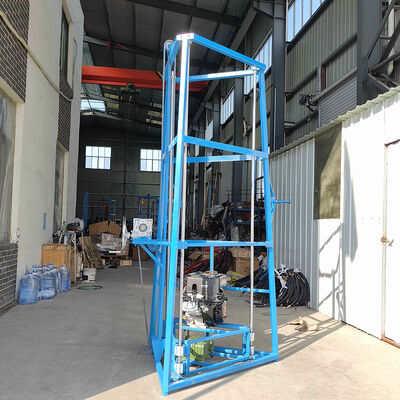

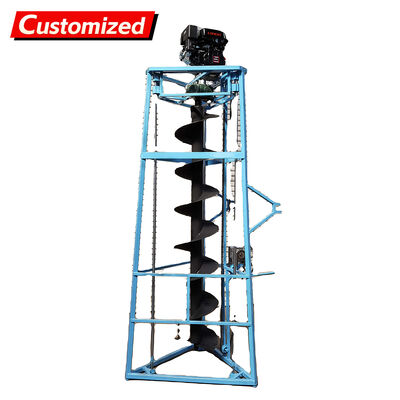

Product Images
