Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Industrial Double-Spiral Screw Classifier Sand Washing Machine for Fine Sand Gravel Grit Silica Washing

Nama merek:	WeSeW
Nomor Model:	Kai001
MOQ:	1 pcs
harga:	US$20,000~US$80,000 per pc
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	10000 pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

CINA

Sertifikasi:

CE,UL

Bahan:

Stainless steel/custom

Fitur materi:

Tahan panas, tahan api

Aplikasi:

Industri kimia, transportasi biji -bijian, transportasi pertambangan, pembangkit listrik

Komponen inti:

Motor

dimensi (l*w*h):

Disesuaikan

Spesifikasi:

Disesuaikan

Struktur:

Sistem Konveyor

Kemasan rincian:

Kasing kayu

Menyediakan kemampuan:

10000 pcs per bulan

Menyoroti:

Fine Sand Gravel Grit Silica Washing Sand Screw Washer

Industrial Spiral Sand Washer

Double-Spiral Screw Classifier Sand Washing Machine

Deskripsi Produk

Industrial Double-Spiral Screw Classifier Sand Washing Machine

The double-screw sand washer is a high-efficiency industrial solution for washing fine sand, gravel, grit, and silica. This robust equipment operates on the principle of differential sedimentation velocity to classify particles between 1.5mm-0.03mm, effectively separating waste mud and water from valuable ores.

Product Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Key Feature	Spiral sand washing machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification, and contaminant removal

Key Advantages

Low power consumption with high classifying efficiency
Heavy-duty construction for extended working life
Dual control system (manual and electric lifting device)
Adjustable weir height with rigid tank structure
Minimal loss of medium-fine sand and stone powder
Energy-efficient operation with large processing capacity
Environmentally friendly design with water recycling capability

Operational Features

This spiral classifier serves as mechanical grading equipment in beneficiation processes. The double-spiral design efficiently filters coarse material while discharging fine material through the overflow tube. It's particularly effective for ore washing, desliming, and dehydration applications.

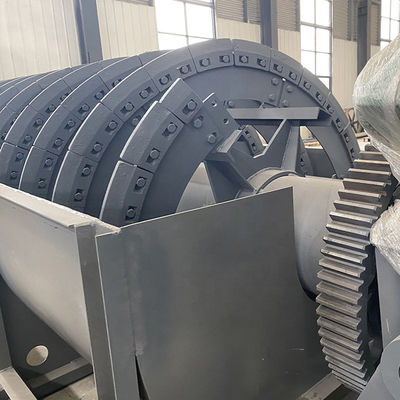

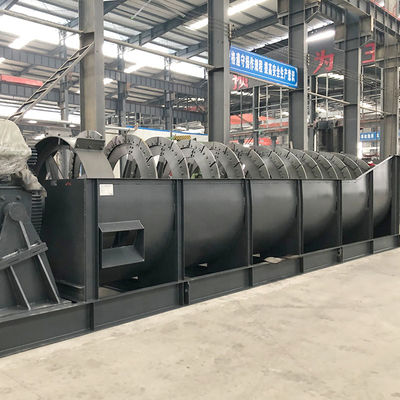

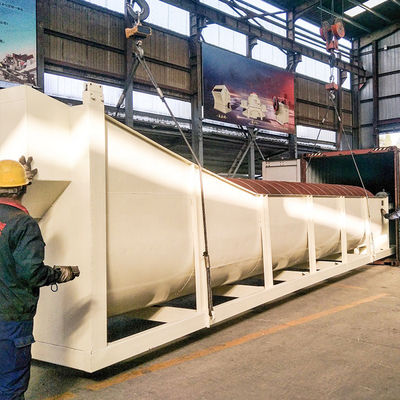

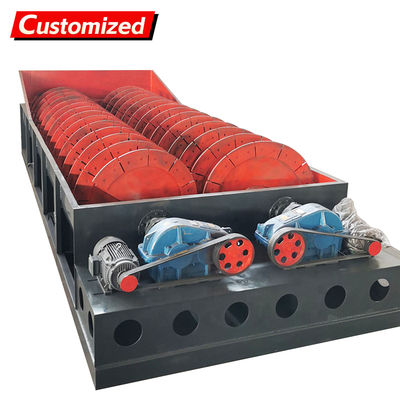

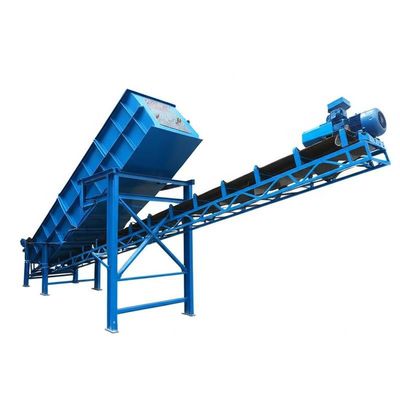

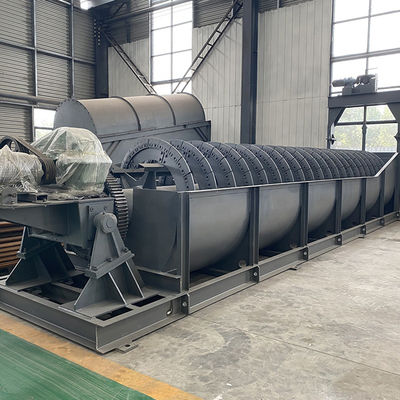

Product Gallery
