Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design

Nama merek:	WeSeW
Nomor Model:	W0010
MOQ:	1 pc
harga:	US$200~US$1,000 per pc
Ketentuan Pembayaran:	T/T, Western Union
Kemampuan Penyediaan:	1000000pcs per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal:

Sertifikasi:

CE/UL

Diproses plastik:

PE, Po, PP, PVC, TPU, PBT, Pet, PLA, dll.

Jenis produk:

Mesin Cetak Ekstrusi Profil

Mode makan:

Banyak Pakan

Struktur perakitan:

Extruder Tipe Integral

Baut:

Sekrup tunggal

Sistem Keterlibatan:

Intermeshing penuh

Struktur saluran sekrup:

Sekrup yang dalam

Nama Produk:

Sekrup kembar bimetal dan laras untuk mesin cetakan injeksi

Kemasan rincian:

Kasing kayu

Menyediakan kemampuan:

1000000pcs per bulan

Deskripsi Produk

Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design

Product Description:

Although there are several reasons for using screws and barrels in plastic output-producing units, you must know its aspects in detail before using them. Below mentioned are a few significant benefits of utilizing it.

High-Maintenance Not Required
This product is low maintenance; hence you don’t need very high tools or sources to maintain its quality. That is why enterprises can effortlessly regulate it.

Highly Durable
It is also understood for its high stability as once you buy this, you don’t need to repair it regularly.

Outstanding Strength
Another plus point of this product has its stability. This product comes with outstanding stability, and you will feel it after using it.

Easily Availability
One more thing that goes into this product’s popularity is its availability, which is very effortlessly obtainable.

Product	machine screw and barrel
Material	38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140); Cr12MoV(JIS SKD-11); 4Cr5MoSiV1(JIS SKD-61)
Nitrided Hardness	HV900°~1000°
Hardness after hardening and tempering	HB260 °
Nitrided Depth	0.5~0.7mm
Nitrided Brittleness	above 2 stage
Surface Roughness	Ra0.4
Screw straightness	0.015mm
Hardess of surface chromium-plating after Nitriding	HV≥950HV
Chromium plating Depth	0.05~0.10mm
Alloy Depth	0.8~3.0mm
Alloy hardness	HRC56°~65°
Alloy(bimetallic)	iron,nickel,tungsten,molybdenum
Types of screw barrel	Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.

Injection molding machine screw material classification:
1. HPT fully hardened powder alloy screw
It is made of tungsten-cobalt powder alloy tool steel and is integrally hardened by a special process. The overall hardness of the inside and outside of the screw is the same, reaching about HRC65°. It is suitable for processing various transparent products, precision products, and special high-temperature and highly corrosive plastics such as LCP, PES, and PPA with fiber added.
2. Double alloy screw
Use SACM645 and 38CrMoAlA as the base material, and then ion spray weld the tungsten carbide nickel-based alloy on the crest or groove. The surface hardness of the screw is around HRC60°. It is suitable for processing various transparent products and engineering materials such as PA6 and PA66 with fiber added.
3. Electroplating screw
SACM645 and 38CrMoAlA are used as base materials. After forming, the outer surface is electroplated with a layer of hard chromium, nickel, titanium and other elements. The hardness is around HRC60°. Suitable for processing PC, PMMA, PET transparent materials and corrosive plastic U-PVC materials.
4. Stainless steel screw
The material is 9Cr18MoV special stainless tool steel, which adopts overall quenching + overall hardening treatment. The overall hardness is around HRC55°.
5. SKD61 screw
Made of Hitachi SKD61 material and processed with a special process, the product has good toughness and strong torsion resistance.
6. Ordinary nitrided screw
It is made of SACM645 and 38CrMoAlA as the base material and processed with a special process. The depth of the nitride layer is 0.5-0.8mm and the overall hardness is HV980~1080°. Suitable for processing ordinary plastics, such as PP, ABS, PS, AS, PVC and other ordinary plastics.

Injection molding machine screw segmentation description:
The screw of an injection molding machine can generally be divided into a feeding section, a compression section, and a homogenizing section (also called a metering section). (Note: Different screws have different proportions of the three sections, different screw groove depths, and different screw bottom diameter transition forms)
1. Injection molding machine screw feeding section
The depth of this section of the screw groove is fixed, and its function is responsible for preheating, conveying and pushing plastic solids. It must be ensured that the plastic begins to melt at the end of the feed section.
2. Injection molding machine screw compression section
This section is the groove depth of the tapering screw, and its functions are melting, mixing, shearing compression and pressurized exhaust of plastic raw materials. The plastic will completely dissolve in this section and the volume will shrink. The design of the compression ratio is very important.
3. Injection molding machine screw homogenization section
This section has a fixed groove depth for the screw groove. Its main functions are mixing, melt transportation, and metering. It must also provide sufficient pressure to maintain a uniform temperature of the melt and stabilize the flow rate of the molten plastic.

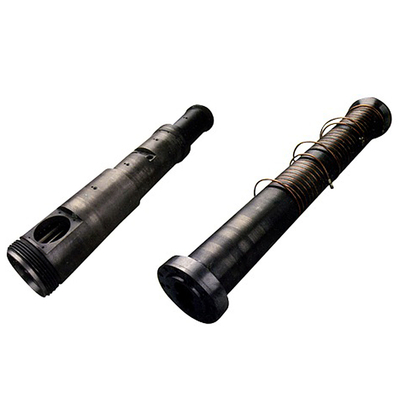

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 0

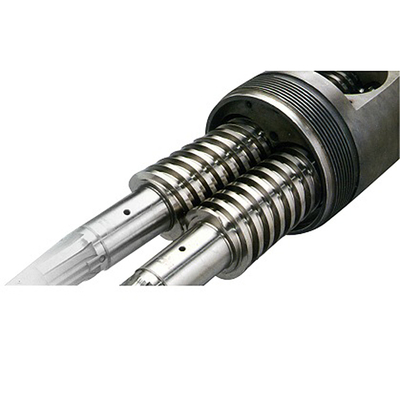

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 5

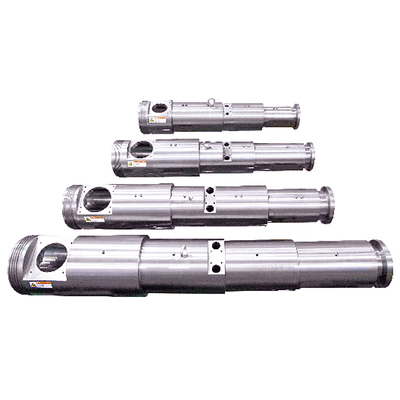

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 6

Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.

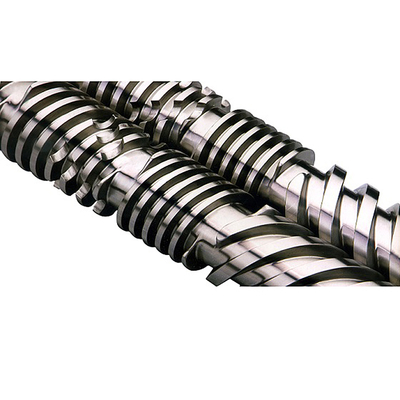

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 7

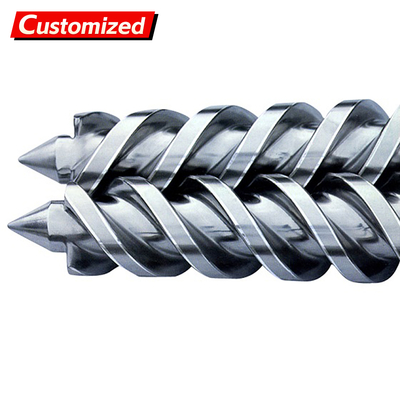

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 8

We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.

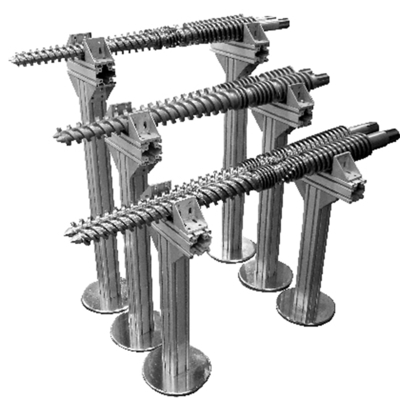

Customized Bimetal Twin Screw and Barrel for Injection Molding Machine LDPE and PVC Material Extruder with Conical Design 9

Q1: Are you trading company or manufacture?
A: We are metal factory only for oversea trading.

Q2: How long is your delivery time?
A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

Q3: Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge once customer place batch order.

Q4: What is your terms or payment?
A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

Q5: Can you produce order and according to the samples?
A: Yes, we can produce by your samples .

Q6: How to get the quote ?
A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

Q7: What are your shipping way?
Sample order: by air freight with 7-15 days.
Batch order: by sea ship( or by train to Europe) with 30-40 days.
